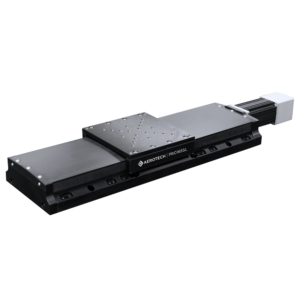

The PRO165SL offers a desirable balance of compact form factor and high load-carrying capability, making it ideal to use in medium- and high-performance industrial applications. Combining superior craftsmanship with the highest quality components, PRO165SL stages consistently and reliably deliver best-in-class positioning performance. Thoughtfully engineered features and options, coupled with competitive pricing, make PRO165SL stages the ideal choice for streamlined integration into a wide variety of precision systems, machines and processes. Compared to the PRO115SL line, PRO165SL stages provide additional load capacity and stiffness with larger bearings and a slightly wider cross-section.

Our APR stages are the highest performing and most versatile direct-drive, mechanical-bearing stages available. With nine models offering a variety of options for load capacity, torque
and dimensional requirements, the APR stage family provides convenient design and integration flexibility. APR stages achieve exceptionally high repeatability, geometric performance and dynamics through a combination of ultra-precise components, cogless direct-drive motors, high-resolution encoder feedback and superior craftsmanship.

With a minimum step size of 10 nm, our PRO-SV stages are the most precise screw-driven lift stages available plus they offer the longest travel range available at the shortest height. They’re also the only long-travel lift stages that can move up to 60 kg of mass while providing excellent payload accessibility and geometric performance.

Our ultra-precise ANT130XY stages deliver superior planar performance with excellent geometric characteristics, thanks to an integrated two-axis design. Equipped with stiff, anti-creep crossed-roller bearings, high-resolution position feedback and ironless linear motors to achieve the smoothest, most precise motion possible, ANT130XY stages can be further enhanced with ultra high-accuracy 2D calibration to optimize even the most demanding inspection and manufacturing processes. Plus, the dynamically optimized design results in impressive speed and process throughput.

Our versatile AGR gear-driven rotary stages bring you significant advantages in load capacity, long-term positioning performance and reliability over other gear-driven rotary positioners. Available in five models with apertures ranging from 50 mm to 200 mm diameters, AGR stages are well equipped to address a wide range of single- and multi-axis applications for general-purpose positioning in industrial and laboratory settings.

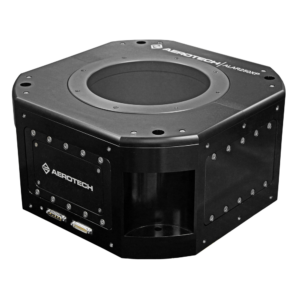

The ALAR family of direct-drive, large-aperture rotary stages provides superior angular positioning and velocity control. ALAR-XP offers extremely high torque output, substantial load capacity and smooth, precise rotation. Featuring a large-diameter clear aperture and a non-cogging direct-drive motor, ALAR-XP stages offer a superior alternative to worm-gear stages.

The PRO190LM provides an optimal balance of positioning performance, payload capacity and size. Equipped with larger, stiffer bearings, PRO190LM delivers considerable load-carrying improvements and enhanced geometric performance compared to PRO165LM. Plus, PRO190LM features a smaller footprint and lower mass than the larger PRO225LM. Combining superior craftsmanship and the highest quality components, PRO190LM stages consistently and reliably deliver best-in-class positioning performance. Thoughtfully engineered features and options, coupled with competitive pricing, make PRO190LM stages the ideal choice for streamlined integration into a wide variety of precision systems, machines and processes.

Leading-edge manufacturing and inspection processes demand positioning tolerances beyond the capability of conventional ball-screw and mechanical-bearing positioning systems. The ABL1500 air bearing stage, with its fully-active preload, exceptionally high stiffness and excellent geometric characteristics, was designed specifically to meet those demands.
